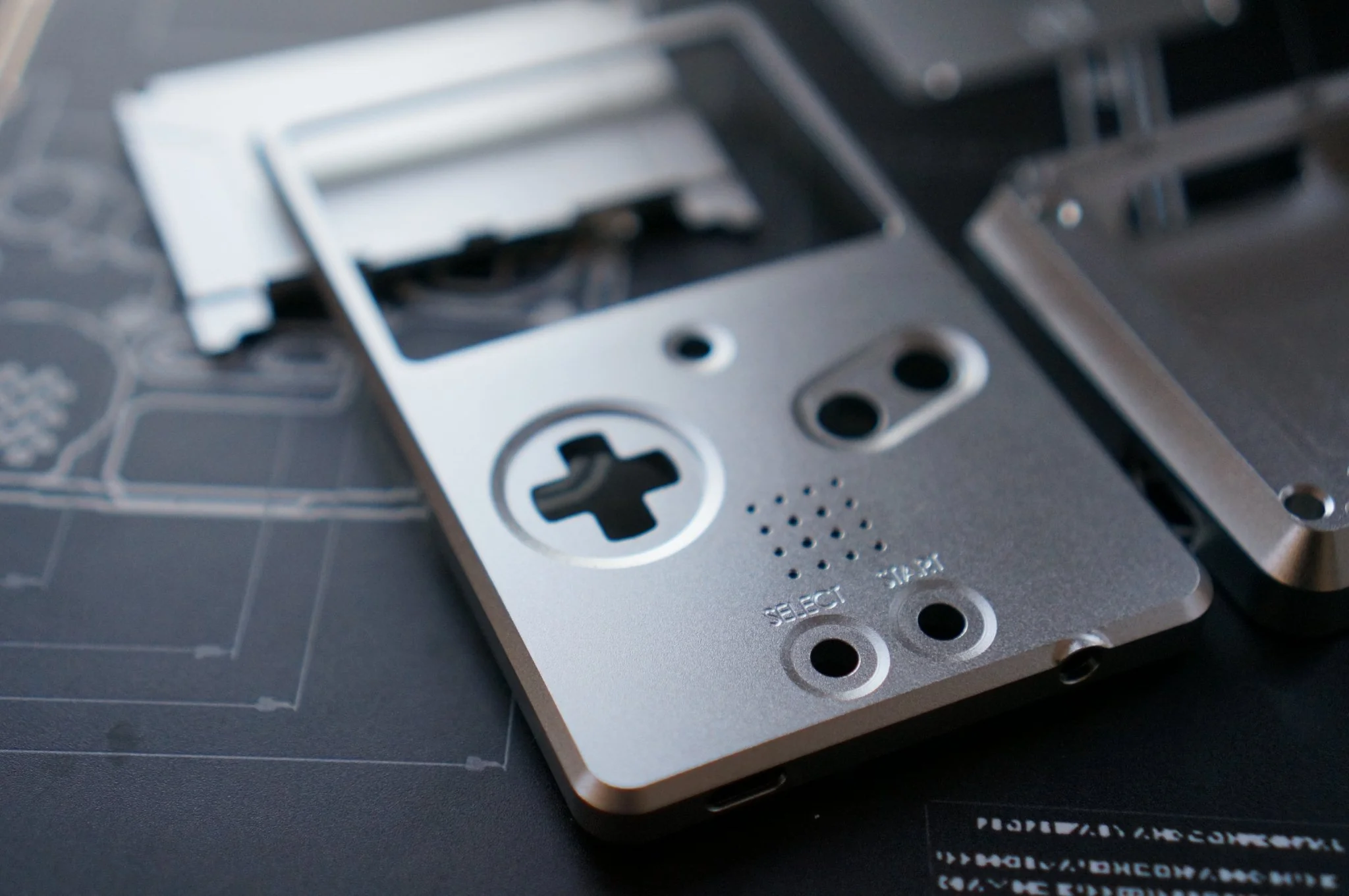

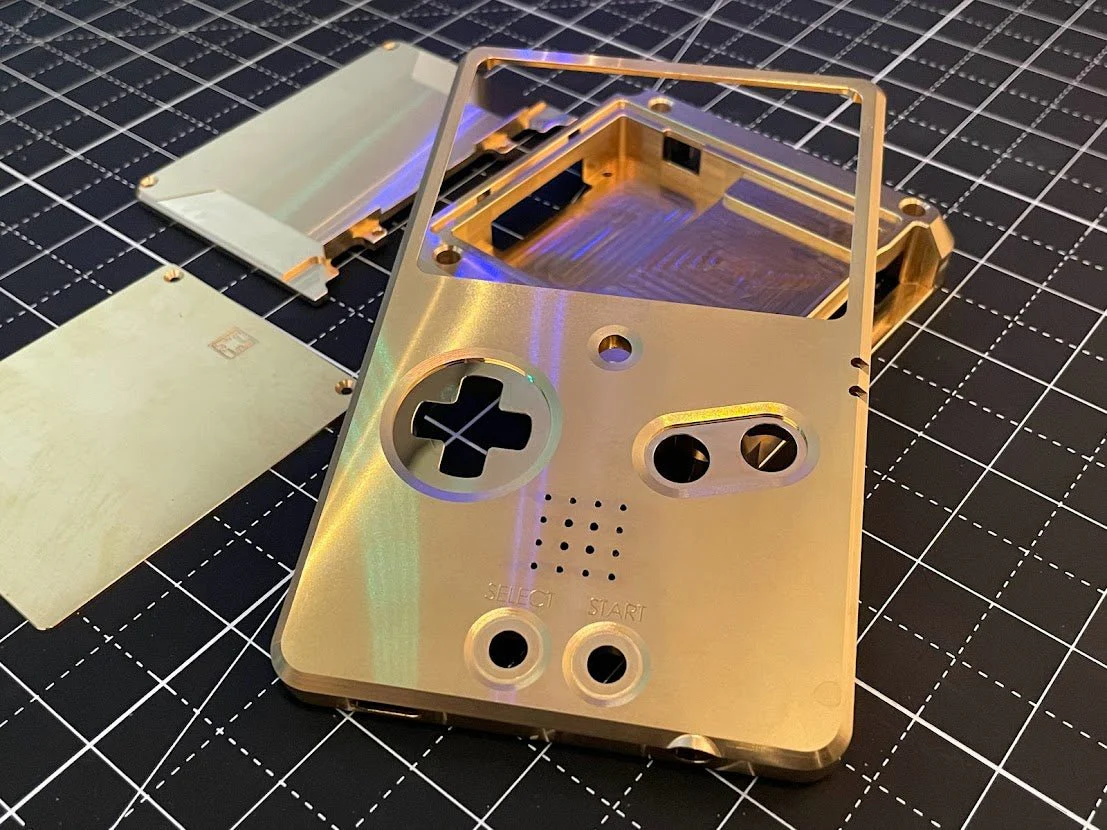

This set transforms the Nintendo Game Boy Advance SP with our signature Boxy Pixel aluminum design. Featuring a second-generation housing, it comprises four essential parts:  front housing, LCD rear housing, main rear housing, battery rear panel, and corresponding fasteners.

Features

• Plug-and-Play Compatibility: Compatible with a used SP and upgraded IPS screen
• Built-in Functionality: Integrated space for optional upgrades such as a type C charge board and/or headphone jack. Included 3D-printed plugs fill unused holes on the bottom for a seamless finish.
• Expanded Battery Capacity: Accommodates a larger, optional 1700 mAh battery, providing extended gameplay sessions.
• Comfortable Design: Increased depth compared to the original enhances comfort during gameplay sessions.

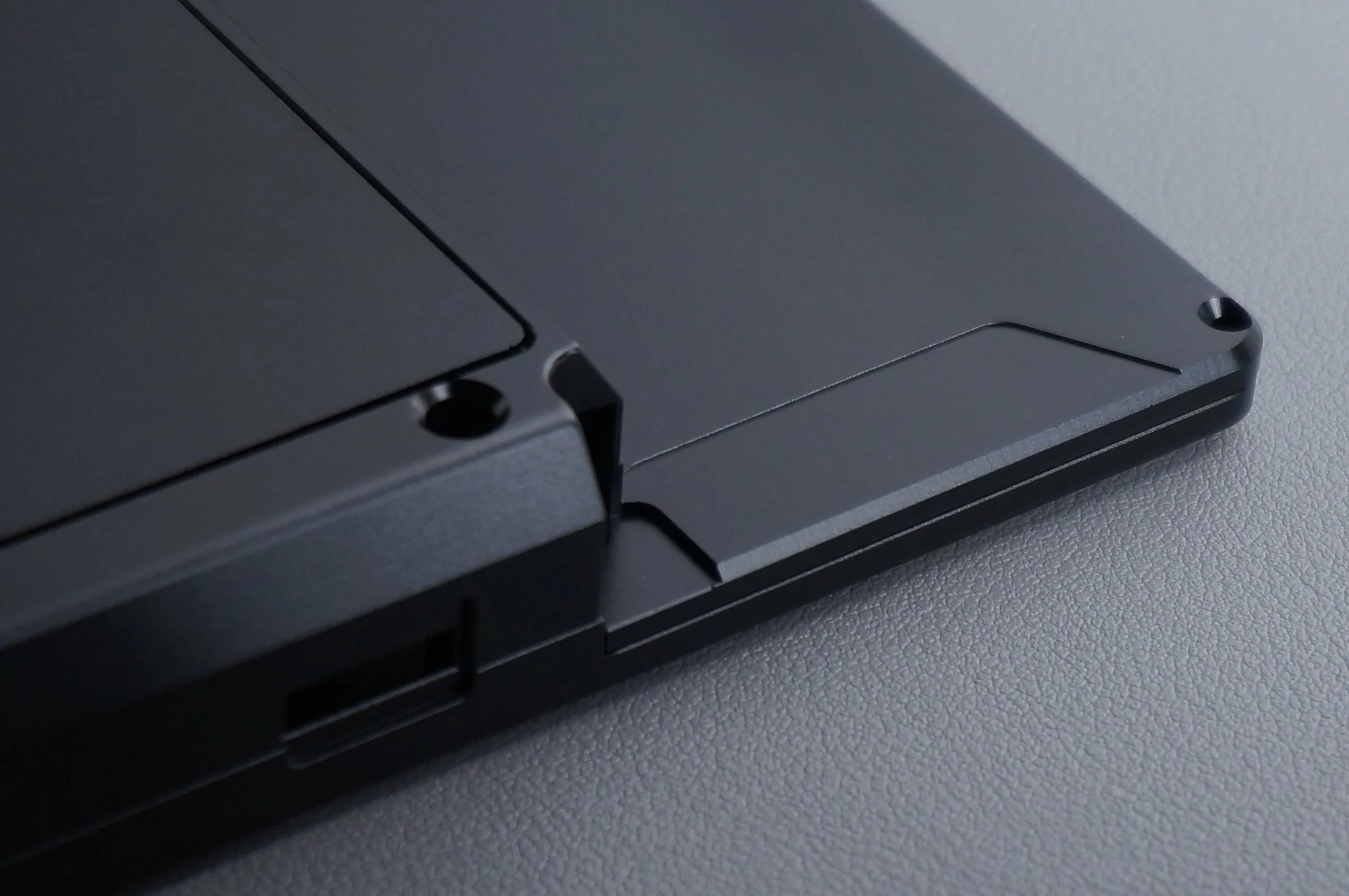

• Port Accessibility: Maintains access to the rear link port and power port
• Dimensions and Weight: Height: 133mm, Width: 82mm, Depth: 22.9mm. Assembled aluminum weight approximately 7.8 oz (varies with modifications).


Includes

• One GBA unhinged shell set
• Fasteners Included: Includes M1.7x3mm and M1.7x4mm long flathead fasteners for secure assembly.

Warnings and Considerations

• Specific Compatibility: Designed for use with Boxy Pixel aluminum housings; compatibility with OEM plastics or other aftermarket parts is not guaranteed.
• Modification Requirements: Certain modifications, such as adding optional components or adjusting settings, may require additional tools or expertise.
• Attachment Limitations: While designed to retain access to key ports, some larger attachment modules may not fit within the housing's dimensions.(eg Gamecube adapter)


Basic parts required:

Metal buttons - Our custom buttons are taller

Our custom diffuser - Unhinged Light Pipe Diffuser

Original Nintendo Game Boy Advance SP (any version)

Plastic power switch and volume slider plastic - Purchase our plastic button kit

Wire (28-30 awg recommended). Can use much smaller wire for any signal wires for headphones.

FAQ

1. Can these new parts fit the Version 1 unhinged?

With the exception of the flat battery panel, no.

2.  Do I use stock silicone, do I use stock L and R buttons, etc?

Answer: I have created an assembly process with images so you can see what is involved to assemble and get a better understanding of what parts are needed for your custom build.

3. Can I use an OEM screen?

Yes!  The stock screen is a VERY tight fit, so carefully remove the foam on the back of the screen and grind down all solder joints on your Nintendo PCB that may interfere with the screen.

If you would rather have a fully functional custom unit built for you, contact one of the builders from our list:  Builders List
